Hotels Factory Individual Wrapped Wet Camera Lens / Glass Cloth Paper Making Machine

1.0 Sets
MOQ
Hotels Factory Individual Wrapped Wet Camera Lens / Glass Cloth Paper Making Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2020
Warranty Of Core Components: 1 Year
Core Components: PLC, Engine
Voltage: AC380V, 50/60Hz
Power: 8.5KW
Dimension(L*W*H): 9600*3800*2100
Weight: 1500
Warranty: 1 Year
Applicable Industries: Hotels, Food & Beverage Factory, Restaurant, Home Use, Food Shop, Wet Wipes Manufacturing Machine
Showroom Location: Egypt, Canada, Germany, Viet Nam, Philippines, Brazil, Indonesia, Pakistan, India, Russia, Spain, South Korea, Chile, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Uzbekistan, Australia
After-sales Service Provided: Overseas Service Provided, Video Technical Support, Online Support, Field Installation, Commissioning And Training, Field Maintenance And Repair Service
Type: Wet Wipes Manufacturing Machine
Product Name: Wet Wipes Making Machine
Product Type: Wet Wipes
Materials: Non-woven Fabric
Speed: 1400-1800/min
Packing Speed: 80-100/min
Packaging Width: 40-110mm
Packaging Height: 10-50mm
Packaging Length: 70-250mm
After Warranty Service: Video Technical Support, Online Support
Local Service Location: Egypt, Canada, Philippines, Brazil, Pakistan, India, Mexico, Spain, Malaysia, Australia, Morocco, Kenya, Argentina, Colombia, Algeria, Romania, Bangladesh, Kazakhstan
Certification: CE
Basic Infomation
Certification: CE
Payment & Shipping Terms
Product Description
TECHNICAL PARAMETER
Model
SY-250R
SY-350R
SY-250W
Speed
60-120 bags/min
80-120 bags/min
Bag size range
(L)40-125mm
(W)40-100mm
(L)40-175mm
(W)40-100mm
the size can adjust
L: 40-140mm W: 40-110mm
material
30-80g/m2 airlay paper,wet strength
paper,spunlace nonwoven fabric
30-80g/m2 air laid paper, nonwoven, spunlace nonwoven fabric etc
Packing material
Lamination film,paper,aluminium
Lamination film,paper, aluminium
Outer Dia. Of Tissue Roll
1000mm
1000mm
Outer Dia. Of Packaging Film Roll
350mm
350mm
Folding option
Max.10 folding vertical,4 folding horizontal
Max 10 folding vertical, and 4 folding horizontal
Liquid range
0-10ml
0-5ml accuracy +0.01ml
Air consumption
300-500m/min, 0.6-1.0Mpa
0.6-1.0Mpa
Total Power
2.8KW
4. 8KW
Power Supply
220/380V 50/60HZ
220/380V 50/60HZ
Machine Weight
1100kg
1200kg
1200Kg
Machine dimension
L3300xW2300xH1600mm
L3300xW2300xH1600mm
L3300*W2200*H1600mm

DESCRIPTION

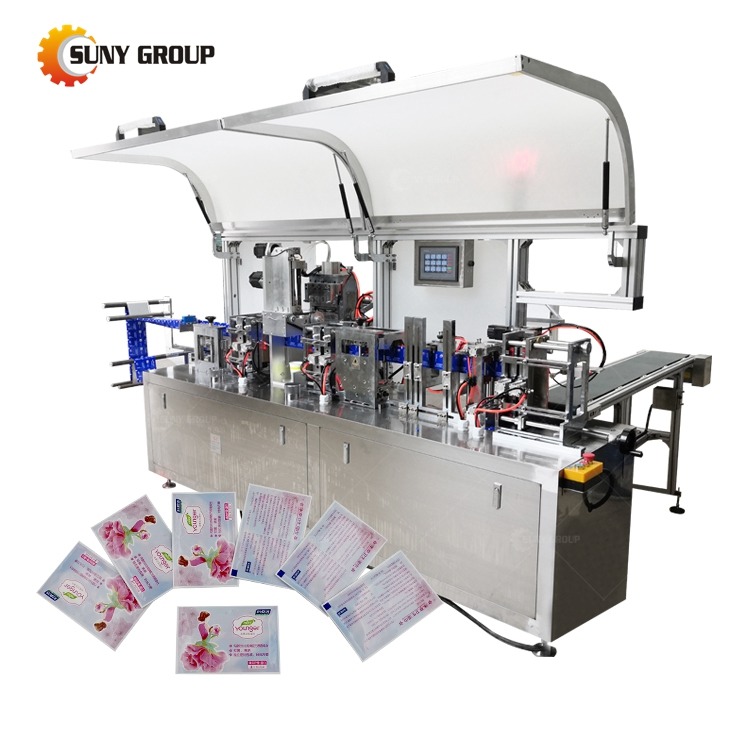

Four Sides Sealing Wet Wipe Packaging Machine is designed as automatic production solution for sanitary wet wipes and make-up removing wet wipe and personal care wet wipe. It can be adjustable to fit to various packaging sizes,a perfect choice for OEM and ODM factory who produce different sizes of wet wipe products on one machine.

FINISHED PRODUCT

Packaging speed is 60-120 pieces/minute, and packaging size can be adjusted, with length 40-175mm and width 40-110mm. Composite film and paper-aluminum film can be selected as packaging raw materials, with hot-melt edging around them, and the edging form can be "-"or "V".

EQUIPMENT STRUCTURE

Name : Fold and draw of film Function: Fold the film and forming it into bag, the sensor make it more exactly ,no blank edge and fault forming
Name : Aluminium alloy Wet wipes folding shelf Function : Fold non-woven fabric according to customer's requirements (Max 10 folding vertical,and 4 folding horizontal)
Name : Cutting non-woven fabric Function : Cut according to the size required by the customer.
Name : Fold and fill Function : Servo control fold into the bag and add liquid to the bag (the part contacting the material is 316 stainless steel), Metering pump imported from Japan, accuracy +0.01ml
Name : adjustable mould, Sealing Function : Bag mouth sealing (hot sealing),The user can change the steel letters to control the Date and codes print on the products the tear mouth have two types for select 'V' or "-“

Name : Conveyor belt,finished product output Function : The finished product is discharged by manipulator, Count, place and transmit
Name: Touch screen Function : The touch screen can be made in your local language(so you can your staff can operate it easily)
FEATURE

ALUMINIUM ALLOY WET WIPES FOLDING SHELF
Fold non-woven fabric according to customer's requirements (Max 10 folding vertical, and 4 folding horizontal)
FOLD AND DRAW OF FILM
Fold the film and forming it into bag, the sensor make it more exactly ,no blank edge and fault forming
PAPER FEEDING STATION
Fix the size of non-woven fabric after folding, servo control the paper feeding station. Cut according to the size required by the customer
FOLD AND FILL
Servo control fold into the bag and add liquid to the bag (the part contacting the material is 316 stainless steel). Metering pump is imported from Japan, accuracy + 0.01ml.
ADJUSTABLE MOULD,SEALING
Bag mouth sealing (hot sealing). The user can change the steel letters to control the Date and codes print on the products the tear mouth have two types for select "V' or ''—",
FINISHED PRODUCT OUTPUT
The finished product is discharged by manipulator, Count, place and transmit.
TOUCH SCREEN
The PLC control touch screen can be made in your local language(so you can your staff can operate it easily).
