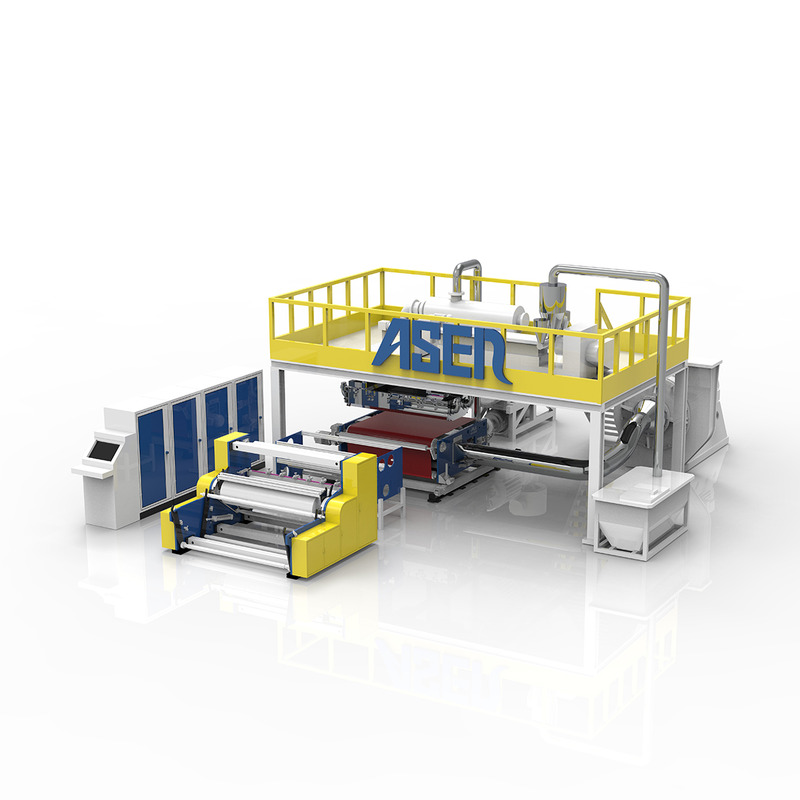

Factory pp nonwoven meltblown fabric machine meltblown 1600mm machine

1 Set
MOQ
$150,000.00(>=1 Sets)
Price
Factory pp nonwoven meltblown fabric machine meltblown 1600mm machine
Features Gallery Product Description Request A Quote
Features
Specifications
Applicable Industries: Manufacturing Plant, Machinery Repair Shops, Construction Works
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Hot Product 2019
Warranty Of Core Components: 1 Year
Core Components: PLC, Engine, Motor, Pump, Spinning Manifold
Condition: New
Automatic Grade: Automatic
Dimension(L*W*H): 12m*6m*6m
Warranty: 1 Year
Production Capacity: 99.8%
Key Selling Points: Automatic
Type: MB1600,MB2400,MB3200
Product Width: 1600mm,2400mm,3200mm
Output: 80kg/ Hour,150kg/hour,200kg/hour
Filament Denier: 2~5 Micron
GSM Range: 8-80gsm
Machine Speed: 80m/min
Installed Capacity: 400KW
Main Raw Material: Polypropylene Chip (PP)
Consumption Of Raw Materials: 0.20%
Product Quality Standard: Follow Up The National And Trade Standard Of Spunbond Non-woven
After Warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Local Service Location: None
Showroom Location: None
After-sales Service Provided: Video Technical Support, Online Support, Field Installation, Commissioning And Training, Field Maintenance And Repair Service
Certification: CE, ISO
Basic Infomation
Certification: CE, ISO
Payment & Shipping Terms
Packaging Details: Packaging according to demand
Product Description
Product Description
Details Images
Meltblown die head assembly
maximum temperature: 300.;
Max.output:200kg/h;
Heating zone:8tod;
Perforated length:3,350mm;
HPI:40;
1 Sets L/D=10; Number of holes:5.276;
Capillary diameter:0.3mm;
Capillary length:3,600mm;
Extrusion Machine
Aperture：90 300kg/h 1pc;
Heating System: electricity heating; Drive Motor: Siemens; Original:CHINA;
Automatic Winding Machine
Effective width:1600/2400/3200 mm; Rolling Speed:200-400M/Minute; Rolling Diameter:2000 mm; Original: CHINA;
Automatic Slitting Machine
Speed:600-800 M/Minute; Min. Slitting width:80mm; Max. Rolling size:1500mm diameter; Auto tensile control:online; Auto meter counting:online; Original:CHINA;
Production Line Control Cabinet
Voltage: 380 V/3 Phase; Touch Screen:Siemens; PLC: Siemens; Frequency:Siemens; Indicator: RKC,JAPAN; Original:CHINA;
Raw Material Dosing Machine
Weight system: by weight; Hopper : 4 pcs; Accuracy:0.01%; Feeding Percentage: 1-99%; Original:USA/ITALY;
Candle Filtration Machine
Filtration Area: 3.5m²; Capacity: 650kgs/h; Filtration Chamber: 2 pcs (switch online); Original:CHINA;
Spinning Pump
Capacity:300-450Kg/H; Speed:40Rpm/Minute; Drive Motor:Siemens; Original: CHINA/GERMANY;
Spinning Beam
Model:1600/2400/3200mm; Heating System:Oil/Electricity Heating; Distribution Design: big hanger type; Original:CHINA;
Spinneret
Hole size: 0.45mm; Hole Qty:12350-24500pcs; Material: SUS431; Original:CHINA/GERMANY;
Embossing Calender Machine
Emboss Pattern: ovel/diamond/sesame/dot; Emboss Roll diameter: 450-520mm; Linear pressure: 30-125 N/mm; Original:CHINA/GERMANY;
Manufacturing Technique

Process of meltblown nonwoven production line

Polymer preparation --- Melt extrusion --- Metering pump --- Meltblown die head assembly --- Solution thin-flow drawing --- Fiber cooling --- Auxiliary network --- Electrostatic electret --- Reinforced finished product
Product Paramenters
Model No.
M-1.6
M-2.4
M-3.2
M(Product width)
1600mm
2400mm
3200mm
Equipment Size
15*8.6*9.5m
15*9*9.5m
15*10*9.5m
Speed
150m/min
150m/min
150m/min
Gram Weight
10-180g/m²
10-180g/m²
10-180g/m²
Yield (according to 70g/m²)
4T/Days
7-8T/Days
9-10T/ Days
Application
Company Profile
Asen(Foshan)Technology Co.,Ltd is one of AZX Group Limited subsidiary company. It is a strong R & D, excellent design,professional production & sales and after-sales service in one company. We are specialized in manufacturing S(Spunbond),M(Meltblown),SS，SXS，SSS，SMS，SMMS ，SSMMS etc.type PP(Polyproplene) Spunbond & Melt blown Nonwoven Production line. Our group was established in 2009, Involve in the field of Nonwoven machine, Nonwoven fabric, Medical supplies etc., we are providing high-quality products and excellent services for global users.
