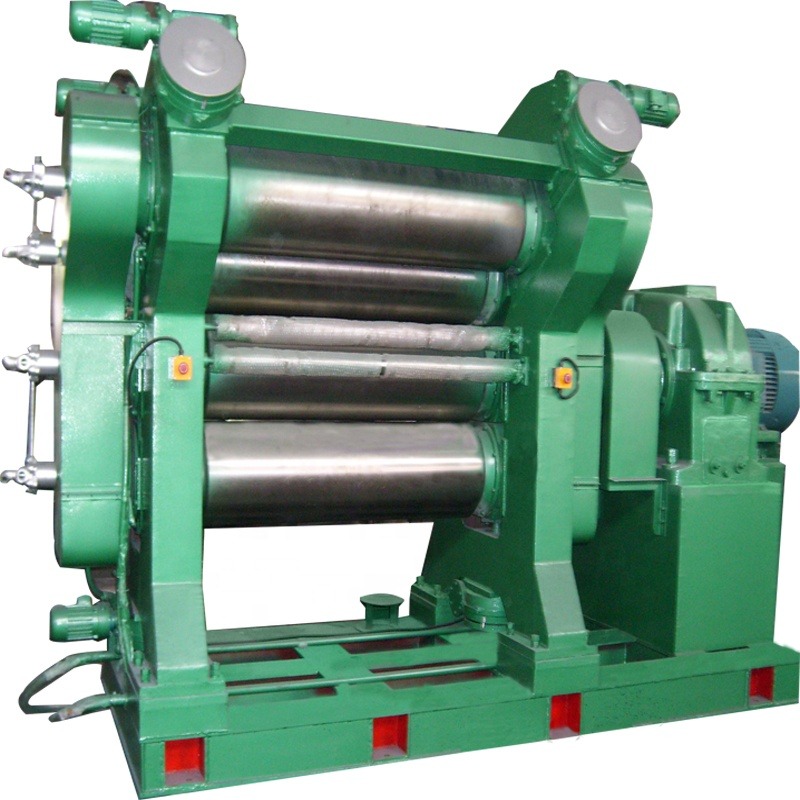

Factory 1400mm Four Roller Working Length Four Roll Calender

Four roller rubber calender machine is mainly using for fabric, canvas and others fabric continuation rubberizing single or double sides, and also production rubber sheet.

1) Calender line for coating textile tire cord fabric (tire industry).

2) Calender line for inner liner, rim cushion and rubber sheet laminating (tire industry).

3) Calender line for coating textile conveyor cord fabric.

4) Calender line for industrial rubber film and sheet.

Four roller rubber calender is consisted of bedplate, frame, rollers, motor, coupling, gearbox, adjusting spacing device, the adjusting temperature device of roller, etc .

Features:

1) The bedplate is whole model, installation convenience.

2) Rollers are made of chilled cast alloy iron, the working surface of roller is hardness and smoothly. steam and cooling water can pass through inner of the rollers so that surface temperature can be adjustable.

3) Adopt roll bearing, high precision, long service life, axes pathway is no abrasion.

4) Full range of bending deflections is optional including middle height, inflection and axis crossing.

5) Adjusting spacing device is consisted of one left and one right hand wheel. The bearing bases need is moved and reached nip by worm and worm wheel. Roller space can be adjusted manually or by electric motor.

6) Roller arrangement can be “I” type, “F” type, “Z” type, “L” type and “invert L” type.

7) The speed reducer is the hard-tooth surface gear reducer of Class 6 precision, which has long service life and low noise.

8) Perfect emergency stop device can ensure the safety of person and equipment.

We may design and produce it as per customers’ requirements, equip various accessories, composing combined product line. Below is the main parameters:
