HTHP Factory Bundle Yarn Dyeing Machine Bundle Yarn Dyeing Machine

1.0 Sets
MOQ
HTHP Factory Bundle Yarn Dyeing Machine Bundle Yarn Dyeing Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Applicable Industries: Manufacturing Plant
Showroom Location: Egypt, Viet Nam, Indonesia, Bangladesh, Uzbekistan
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Ordinary Product
Warranty Of Core Components: 1 Year
Core Components: PLC, Bearing, Motor, Pressure Vessel, Pump
Condition: New
Automatic Grade: Automatic
Voltage: 220V/380V
Power: Depending On Machine Capacity
Dimension(L*W*H): Depending On Machine Capacity
Weight: Depending 0n Machine Capacity
Warranty: 1 Year
Machine Capacity:: 6kg-3000kg
Liquor Ratio Starts At:: 1:4
Max Temperature:: 140℃
Material:: Stainless Steel
Heating Mode: Steam
After Warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Local Service Location: Egypt, Viet Nam, Indonesia, Colombia, Sri Lanka, Bangladesh, Uzbekistan
After-sales Service Provided: Video Technical Support, Online Support, Field Installation, Commissioning And Training, Field Maintenance And Repair Service
Basic Infomation
Payment & Shipping Terms
Packaging Details: Export standard packing
Supply Ability: 58 Set/Sets per Month
Product Description
Product Description

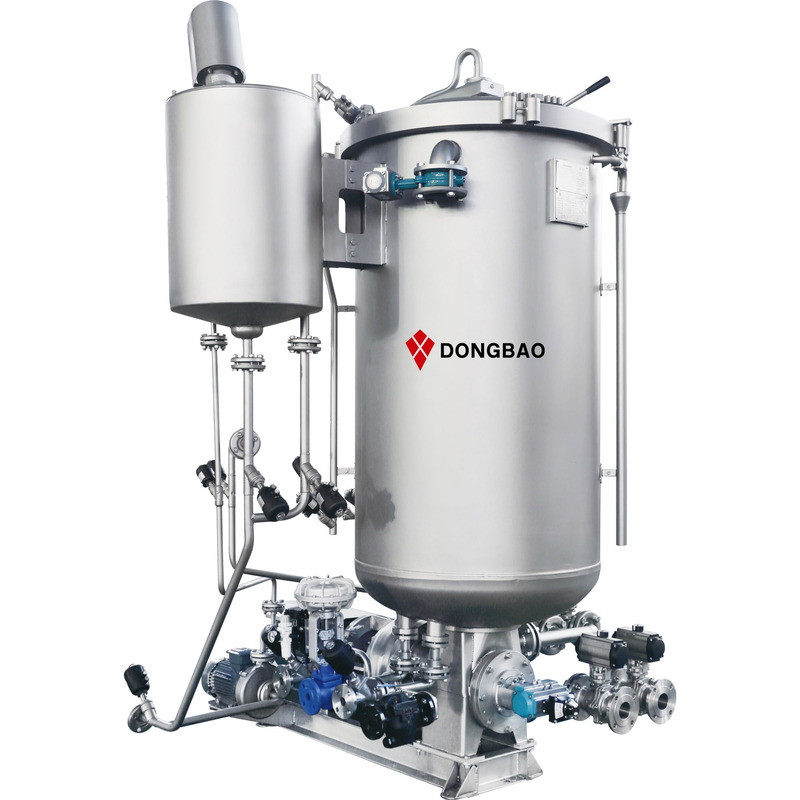

HTHP Package Yarn Dyeing Machine
The third-generation HTHP Package Yarn Dyeing Machine is one of Dongbao's highly successful dyeing machine series. It has witnessed Dongbao's continuous development in technology and innovation. The innovative design of the built-in heat exchange coil makes the machine more compact and reduces a lot. Unnecessary piping effectively reduces bath ratio and energy consumption. The chemical tank containing the dosing pump is responsible for uniformly mixing the chemical dyes and injecting the dye solution into the dyeing process in a timely and appropriate amount. This dyeing machine contains two different dyeing processes. The new energy-saving mode uses ultra-low bath ratio dyeing from the inside to the outside of the dye cycle; in the conventional full-cylinder dyeing process, the constant conversion through the commutator is the same It can realize double-cycle dyeing with internal and external alternating to achieve leveling effect. Both of these different staining processes support a minimum of 50% half-load multi-level staining. The latest pressure water press function closes the master cylinder and pressurizes at the end of the dyeing process, then instantly opens the valve and removes the remaining dye liquor by air pressure to reduce the residual dye liquor. Special Features - Newly developed heating core inside the machine to lower the liquor ratio - PREDRY function to shorten the process time - Smart rinsing process to save water - Flexible loading - Technical Details - All liquor-carrying parts are made of stainless steels 316L - Liquor ratio 1:4-1:6 - Max. working pressure: 0.44Mpa - Max. working temperature: 140℃ - High efficiency & energy saving mixed flow pump - Heating rate: 20-130℃ about 30 minutes （saturated steam pressure 0.7Mpa） - Cooling rate: 130-80℃ about 20 minutes （cooling water pressure 0.3Mpa） - Standard spindle dia. is φ48mm - Standard package size is φ165mm, height 160mm, weight is calculated as 1kg per cone - Intelligence control system, step-less flow control: adjust the pressure between the inner and outer layer automatically. Optional - Various kinds of carriers (fiber, package, beam) - Hot temperature drain - Progressive dosing system - Accessories (cone, intermediate gasket and self-falling locker） - Unloading device - 100% Hot water stock tank, preparation of the complete process bath - Second preparation tank Specifications

Model
NO. of spindles
NO. of layers
NO. of packages
Main pump (KW)
DB ECO-DYE 21
1
3-5
3-5
2.2
DB ECO-DYE 40
3
4
12
3.7
DB ECO-DYE 43
4
4
16
5.5
DB ECO-DYE 43
4
5
20
5.5
DB ECO-DYE 53
6
5
30
7.5
DB ECO-DYE 75
12
6
72
11
DB ECO-DYE 85
18
6
108
15
DB ECO-DYE 85
18
7
126
15
DB ECO-DYE 90
19
8
152
18.5
DB ECO-DYE 110
28
8
224
22
DB ECO-DYE 120
36
7
252
22
DB ECO-DYE 120
36
8
288
30
DB ECO-DYE 130
39
9
351
37
DB ECO-DYE 140
46
9
414
37
DB ECO-DYE 160
62
9
558
55
DB ECO-DYE 170
69
10
690
55
DB ECO-DYE 186
90
10
900
75
DB ECO-DYE 200
108
10
1080
90
DB ECO-DYE 200
108
11
1188
90
DB ECO-DYE 200
125
11
1375
110
DB2 ECO-DYE 200
125
13
1625
132
Note: - Standard spindle dia. isФ48mm, theФ29mm triangle spindle is only for 6 layers package or below. - Standard package size is Ф165mm × H160mm, 1kg per package. - Specifications of above machines are only for reference. The company reserves the right of alteration.
Details Images
Company Profile
Wuxi Dongbao Machinery Co., Ltd is a green technology dyeing machine manufacturer and an active participant for environmental protection & energy saving program. We are specialized in designing, developing and manufacturing different series of dyeing machines. Over the past 20-plus years, we have grown from a regional manufacturer into a global technology innovation leader. With the additional support of Dongbao International Limited which is responsible for International Sales and Marketing, as well as the new established R&D Department to develop new state-of-the-art machinery equipment for the international textile clientele.  Dongbao stands for the reliability, qualified, first-class service and latest technology. The advanced technology, knowledge, and many years of experience have made Dongbao a technology solutions powerhouse in the textile field. We promise that our products will always be competitive throughout its life cycle, because our machine consists of advanced design, masterly technics and high quality. We are also concerned about the future. We invest 3.5% of our annual revenue in developing mature products and researching new technology. We are aiming at manufacturing more durable & stable and lower consumption machine. We do our best to provide continuous & suitable technical innovation program for our customers and partners to achieve mutual benefits. Dongbao pays great attention to after-sales service management and extending the after sales network. Our professional after-sales service team is able to help customers deal with all kinds of problems and emergencies promptly. Select Dongbao means choose higher quality, advanced technology and better service.
Exhibition
Packing & Delivery
FAQ
Q1. What is the advantage about your company? A1. Our company has professional team and professional production line. Q2. Why should I choose your products? A2. Our products are high quality and low price. Q3. Any other good service your company can provide? A3. Yes,we can provide good after-sale and fast delivery.
