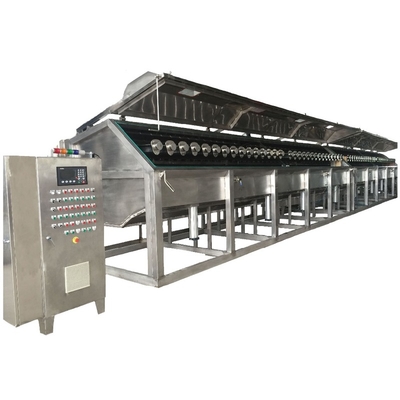

Low-cost yarn dyeing and room temperature dyeing machines are the first choice of dyeing machine manufacturers

1 Set
MOQ
$15,000.00(>=1 Sets)
Price
Low-cost yarn dyeing and room temperature dyeing machines are the first choice of dyeing machine manufacturers
Features Gallery Product Description Request A Quote
Features
Specifications
Applicable Industries: Garment Shops, Manufacturing Plant, Textile Industry
Showroom Location: None
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Ordinary Product
Warranty Of Core Components: 1 Year
Core Components: PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump
Condition: New
Automatic Grade: Semi-automatic
Voltage: 380v
Power: 45kw
Dimension(L*W*H): 13860*2980*2650
Weight: 1t-10t
Warranty: 1 Year
Production Capacity: 5/month
Material: Stainless Steel
Capacity: 8-25kgs/tube
Length Of Tube: 1200-2000mm
Length Of Hank: 820mm
Liquor Ratio: 1:5-8
Max.working Temperature: 98℃
Steam Working Pressure: 0.3Mpa
Heating: Direct Steam/indirect Steam
After Warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Local Service Location: None
After-sales Service Provided: Free Spare Parts, Video Technical Support, Online Support, Field Installation, Commissioning And Training, Field Maintenance And Repair Service
Certification: CE
Basic Infomation
Certification: CE
Payment & Shipping Terms
Supply Ability: 6 Set/Sets per Month
Product Description
Product Description

Product Background Description

Modern dyeing factory in the 21st century must have efficient energy-saving low bath ratio at room temperature and pressure hank yarn jet dyeing machine. Based on the consideration of environmental protection and energy conservation, Our company has developed a unique double transmission system dyeing machine based on the existing dyeing technology. Its bath ratio is reduced by 35% on the traditional basis. With the precise intelligent control, the stainless steel 316 is adopted. By the way, you have a durable and advanced equipment experience, but also to make your production process of cutting-edge world.

Technical Data
1) Design pressure: 0.44Mpa
2) Maximum working pressure: 0.4Mpa
3) Design temperature: 140 ℃
4) Maximum operating temperature: 135 ℃
5) Effective length of hanging yarn: 1200-1500mm
6) Suitable length of hank: 820mm
7) Bath ratio: 1: 8-12
8) Heating rate: 20 ℃ ~ 130 ℃ for about 30 minutes (saturated steam pressure value of 0.7Mpa)
9) Cooling rate: 130 ° C to 80 ° C for about 20 minutes
Standard Structure
1) Body: high-quality high-corrosion-resistant stainless steel
2) Spray tube: high corrosion-resistant stainless steel plate manufacturing
3) High-performance stainless steel axial flow pump
4) Reliable PLC program controller
5) Automatic opening system
6) Machine design of multiple sets of security operating system
7) Easy to install yarn, yarn, cleaning nozzle tools
Model
DGAKS-801
DGAKS-810
DGAKS-820
DGAKS-840
Capacity(kgs)
6
80
160
320
Spray tube(pcs)
2×1/2
10
20
40
Pump motor(kw)
0.75
4
7.5
22
Driving motor(kw)
0.2
0.37
0.75
1.5
Recommend Products
DONGGENG HIGH PRESSURE HIGH TEMPERATURE DYEING MACHINE
DONGGENG DYEING MACHINE FOR LAB
Our Advantages
1) Excellent, high corrosion-resistant stainless steel
2) Ultra-low bath ratio , Wisdom, energy saving and environmental protection
3) Humanized design Automatic lifting bracket
4) Automatic feeding system Precision feeding
5) Direct heating and indirect heating combined
6) Won the invention and utility model patent certificate
Certifications
Why Choose Us
Nantong East Heptanoic Machinery Co., Ltd. is located in taoyuan industrial zone, rugao software park, the longevity town, located innantong city, north of the Yangtze river in the Yangtze river delta.The company specializes in the manufacture and development
of textile printing and dyeing machinery equipment, is a private scientific and technological enterprise in jiangsu province and a high-tech enterprise in jiangsu province, enjoying a good reputation among peers in the industry.

Company has dyeing and mechanical industry more than technical staff, strong technical force, excellent processing equipment, advanced product technology, detection means complete, stable quality, reliable performance, products in addition to satisfy the
masses of customers at home and abroad, also exported to other countries and regions of the world, with excellent quality, high-quality perfect after-sales service, wins the general customers trust and praise.

Specialized in high temperature, room temperature yarn dyeing machine development and manufacturing enterprises.Engaged in this field has more than 30 years of history, the main products are series of high temperature and high pressure DGHKS jet Hank dyeing machine, DGCKS series high temperature and high pressure cheese dyeing machine, DGAKS series of atmospheric pressure jet Hank dyeing machine, the bobbin DGRDKS high-speed dryer, DGSKS high temperature and high pressure vacuumalready set machine DGTYD tunnel Hank dryers and other products, is the domestic and foreign dyeing manufacturers the ideal choice.

The company is willing to first-class products and excellent after-sales service for new and old customers at home and abroad.
