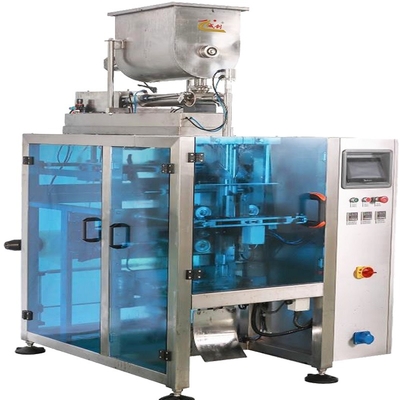

KL-Y6001 Liquid Full Automatic Quantitative Food / Paste Products Bag Packaging Equipment

1 Set
MOQ
$4,500.00(1 - 2 Sets) $4,450.00(3 - 4 Sets) $4,400.00(>=5 Sets)
Price
KL-Y6001 Liquid Full Automatic Quantitative Food / Paste Products Bag Packaging Equipment
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Multi-Function Packaging Machine
Applicable Industries: Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Other
Weight (KG): 1450
Showroom Location: Egypt, Canada, United Kingdom, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangl
Condition: New
Function: FILLING, Sealing, Quantitative
Application: Food, Beverage, Medical, Chemical
Packaging Type: Bags
Packaging Material: Plastic, Aluminum Plastic
Automatic Grade: Automatic
Driven Type: Electric
Voltage: AC 380V
Dimension(L*W*H): 1350*980*1980
Warranty: 1 Year
Key Selling Points: Automatic
Marketing Type: New Product 2022
Machinery Test Report: Not Available
Video Outgoing-inspection: Not Available
Warranty Of Core Components: 1 Year
Core Components: PLC
Production Capacity: 50bag/min
Product Name: Full Automatic Liquid/paste Products Bag Packaging Equipment
Usage: Filling And Sealing
Bag Type: 3/4 Sides Seal
Keyword: Liquid/paste Bag Packaging Machine
Packing Speed: 4-10bags/min
Color: Silver
Material: 304 Stainless Steel And Iron
Model: KL-Y6001
Weight: 980KG
Filling Material: Liquid/paste Products
Basic Infomation
Model Number: KL-Y6001
Payment & Shipping Terms
Packaging Details: WOODEN BOX
Product Description
Product Description

Product Application

  Widely used in food, medicine, chemical industry such as: bean paste, lotus filling, fish filling, fruit filling, melon filling, water jam, peanut butter, chili sauce, salad dressing, cheese, soy sauce, liquor, peanut oil, mineral water, Automatic quantitative packaging of fluids and semi-fluids such as chemical liquids and non-food detergents and greases. The packaging machine can pack a variety of materials. The length of the bag can be adjusted. When you want to pack a variety of packaging specifications, the bag width is not regular, you can configure multiple sets of different packaging specifications according to the packaging specifications and weight of the bag. The packaging machine can also be equipped with different material conveying pumps, which are especially suitable for automatic quantitative filling and packaging of objects under high temperature conditions, which can effectively improve production efficiency and avoid secondary pollution caused by bacterial invasion. It can be equipped with our cooling type water tank cooling equipment for production, saving production time and improving overall production efficiency.

Product technical parameters
No.
name
technical parameters
1
model
KL-Y600Ⅰ
2
Making bag size
W:100-250mm L:150-480mm
3
Film width
220-560mm
4
Packing material
Composite film(NY/PE ect.)
5
Packing speed
4-10bag/min(depend on packing weight,material viscosity)
6
Packing volume
Max 5000CC
7
Packing type
Back seal
8
Power supply
AC 380V 50Hz
9
Power
4.5Kw
10
Air pressure
0.6-0.8Mpa.0.006m3/min
11
Dimension
L1350*W980*H1980mm
12
weight
980kg

Main Features

1) Simple structure in linear type ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

Certifications
Detailed Images

Machine Parts



Machine Parts


Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
1350 (L) * 980 (W) * 1980(D)
Weight
980kg



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
