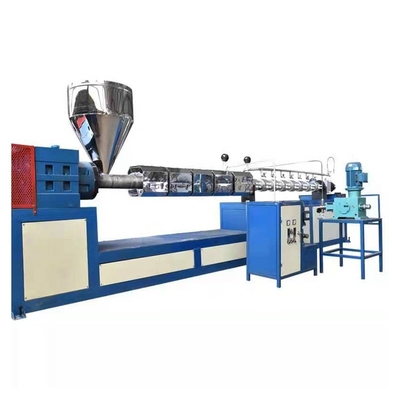

Fruits and vegetables packing various vegetable mesh bag pe net making plastic packing machine with good quality

1.0 Sets
MOQ
Fruits and vegetables packing various vegetable mesh bag pe net making plastic packing machine with good quality
Features Gallery Product Description Request A Quote
Features
Specifications
Application: Fruit And Vegetable Packing
Plastic Processed: PE
Condition: New
Screw Design: Single-screw
Screw Material: 38CrMoALA
Screw Diameter (mm): 75mm
Screw L/D Ratio: 55:1
Screw Speed (rpm): 100 Rpm
Showroom Location: None
Voltage: 380V 50HZ
Dimension(L*W*H): 12m*4m*3m
Power (kW): 40
Weight: 500kg
Warranty: 2 Years
Key Selling Points: High Productivity
Applicable Industries: Food & Beverage Factory, Farms, Food Shop, Food & Beverage Shops
Marketing Type: Hot Product 2021
Video Outgoing-inspection: Not Available
Machinery Test Report: Not Available
Warranty Of Core Components: 1 Year
Core Components: Motor
Product Name: Extended Mesh Machine
Foaming Ratio: 20-40 Times
Installed Size Of The Whole Machine: 12mx4mx3m
Total Weight Of The Whole Machine: About 2.5T
Number Of Net Sets: 2 To 3 Million
After-sales Service Provided: Video Technical Support, Online Support
After Warranty Service: Video Technical Support, Online Support
Local Service Location: None
Basic Infomation
Payment & Shipping Terms
Packaging Details: According to customer's request
Product Description
Products Description
Application
This production line is used for continuous and automated production of plastic foamed nets once formed. This machine can produce various types of apple nets, watermelon nets and other kinds of outer packaging of fruits and vegetables. With different die heads and auxiliary machines, it can produce foaming sheets, foaming rods, foaming strips, foaming tubes and other products.
Component
1. TLD-75 extruder ………………………………………………………………1 set 2. Power distribution cabinet……………………………………………….1 set 3. Butane injection system..................................................1 set 4. Blowing agent injection system.......................................1 set 5. Machine head mould………………………………………………..........1 set 6. Cooling system………………………………………………..................1 set 7. Traction machine……………………………………………..................1 set 8. Automatic cutting machine………………………………………………1 set 9. Automatic counter…………………………………………………………….1 piece
Detailed configuration
1.TLD-75 extruder 1 set Butane regulator tank, butane gas pipeline is equipped with pressure
2. Distribution cabinet 1 set
3. Butane injection system 1 set (1) Butane plunger injection pump (2) Butane regulator tank, butane gas pipeline is equipped with pressure gauge 4. Foaming agent injection system 1 set (1) Blowing agent injection pump (2) Blowing agent heating system 5. Machine head mould 1 set (1) Die head: bidirectional rotating die head (2) Die head transmission form: reduction box and transmission (3) Die head motor power: 4KW frequency conversion speed regulation 6. Cooling system 1 set (1) Cooling method: water cooling and air cooling (2) Noise-free industrial cooling fan 7. Tractor 1set (1) Traction method: roller traction (2) Speed ​​regulation method: frequency conversion speed regulation (3) Motor power: 0.75KW variable frequency speed regulating motor 8. Automatic cutting machine 1 set 9. Automatic counter 1 piece
Installation, warranty and technical services: 1. The contractor is responsible for the installation and commissioning of the equipment in the country, with the cooperation of the custom-made staff. One person will be dispatched for installation, commissioning, and training of demand-side personnel for 7 days. At this time, they will be responsible for food and accommodation, safety and other issues. 2. Under the premise of the correct use and maintenance of the equipment by the customer, the contractor will be guaranteed for one year, and the vulnerable parts and non-special parts are not included in the warranty. (Such as belts, chains, bearings, blades, etc.). 3. The contractor is responsible for providing the formula and a complete set of processes to the custom-made party. 4. The contractor provides long-term technical support and accessories at cost prices.
TLD-75 extruder
Part Name
main project
Specification model
Screw barrel
Screw diameter
Φ75mm
Screw length to diameter ratio
55:01:00
Number of screws
1
Barrel heating power
20KW
heating method
Cast aluminum energy-saving heater
Heating zone
Zone 10 heating
Head power
4KW
Nitriding depth
0.40-0.70mm
Nitriding hardness HV
890-980
Surface roughness mm
Ra0.8-Ra1.6
Straightness
≤0.015
Reducer
Gear reducer
The shape is a square box
Main motor
power
11KW
Host
Configuration method of machine head and mold flange
Flange type bolt connection
Total power
≈40KW
