1. Automatic stop at preset diameter and at yarn break, speed up to 800 m/min.
2. Special winder for the production of bobbin size from 180-185mm.
3. Slow start and progressive speed increase, adjustable winding tension with frequency variator, mechanical clearers, yarn tensioners and anti-patterning device.
4. Supplied in sections of 1 up to 96 spindles ready for opearation.

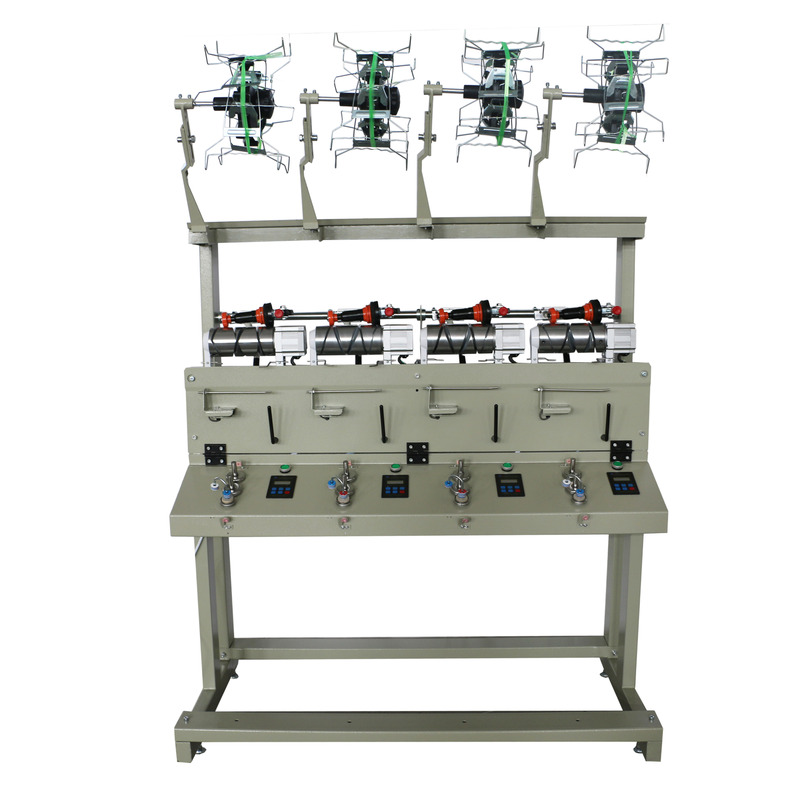

1. Automatic stop at preset diameter and at yarn break, speed up to 1000 mt/min.
2. Special winder for hank to cone, for any type of yarns & blends.
3. Slow start and progressive speed increase, adjustable winding tension with frequency variator, mechanical clearers, yarn tensioners and anti-patterning device.
4. Supplied in sections of 1 up to 96 spindles ready for opearation.
Item | Technical parameters | ||||
Types of winding | Drum,Random | ||||
Mechanical speed | Up to 1000m/min (process speed depending on quality of yarn and feed packages) | ||||
Package shape | Cylindrical or conical | ||||
Traverse length | 10 inch: 250mm | ||||
Mechanical anti-patterning system | Swing amplitude of creel :1-3mm | ||||
Package bobbin | 0°，3°30’ | ||||
Package diameter | Up toφ 290 mm | ||||
Package density | 0.2-0.4g/cm3 | ||||
Fibre / count | Cotton.flax, wool, silk,chemical fiber /Ne 6…180 | ||||
Auto stop while yarn break | With electronic yarn detector,the spindle will stop when yarn break | ||||
Slow start | For smooth start and better winding quality,supportting individual slow start for each spindle(available on request) | ||||
External dimensions | 1700(length) ×0.7(width) ×1.64(height) | ||||
Power supply | 220V | ||||
Zinc Alloy Winding Drum
Lead: 152mm
Outer diameter: 82mm
Length: 176mm
Turns: 2 .5
Ni-P Alloy Winding Drum
Lead: 146mm
Outer diameter: 95mm
Length: 176mm
Turns: 2
Ni-P Alloy Winding Drum
Lead: 150mm
Outer diameter: 82mm
Length: 176mm
Turns: 2.5
