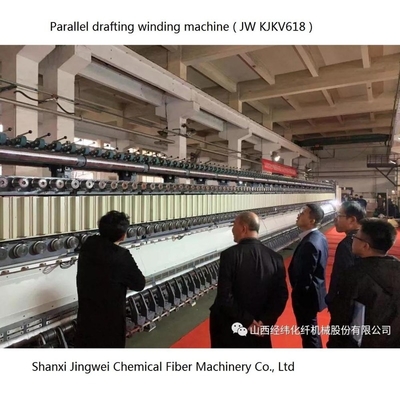

Shanxi Jingwei Chemical Fiber Machinery Co., Ltd. launched a redesigned version of KJKV618, the standard version KJKV718 and the top version KJKV818 for the 2019 polyester polyester nylon composite yarn based on the original size KJKV518. At the same time, the water-supplied refrigeration equipment has stable operation and low cost of single spindle, and has made outstanding progress in electrical automation and energy-saving efficiency.
We will soon launch more improved modules of this model before the end of 2019, accepting the transformation of old equipment similar to this model, welcome to inquire.
1.1 Product use
Parallel drafting winding machine ( JWKV518 (II) ) is used for polyester yarn, nylon and polypropylene filament production in the process of drafting and winding . The polyester filament (UDY.POY) is spun out by spinning machine,then it is drawn,wound and molded by this machine, to form a certain size, strength, elongation and other physical properties, to meet the requirements of weaving, warping and other post process.
1.2 Product feature
Parallel draft
Single spindle winding
Full tube rate
No interference from each tube
Wide range of spinning
Improve production efficiency
Advanced control system:
Synchronous motor variable speed drive technology, convenient adjustment
Fine adjustment of spinning tension
Perfect forming and convenient unwinding.
2. Main specifications
| Machine type | Double sided, double draft zone, top wire rack(optional for both sides of the wire rack) |
| Suitable linear density | 50 - 260 dtex (45-250 denier 200-60 branches) |
| Spindles | 144 spindles, 12 knots, 6 spindles per side. |
| Spindle pitch | 170 mm |
| Original silk bobbin size | Φ150(outside dia.) × Φ140(inside dia.) ×190(length) mm |
| Feeding bobbin holder | Double trolley type movable type (SC4 type car, user homemade) |
| Original fiber frame | Fixed fiber holder |
| Feeding roller | Working diameter is 124 mm, surface hard chromium polishing |
| Roller | NBR coated, diameter 90 mm, torsion spring pressure; Adjustable pressure range 19.6-68.6 Newton (2-7 kg) |
| Drafting zone distance | Zone 1: (pre drafting zone) 253 mm; Zone 2: (main drafting zone) 580 mm |
| Draft ratio | Zone 1: 1-1.5; Zone 2: 1-5 |
| Drafting plate | Upper draft plate (hot plate): working diameter is 90 mm, surface hard chromium polishing, electric induction heating, temperature single plate self-control; Lower draft plate: working diameter is 100 mm, surface chrome polishing |
Heat setting mode of main draft zone | Narrow slit hot plate, width of 2mm, length of 360mm, resistance wire heating, computer detection temperature control. |
| Dividing rotor | Diameter is 22 mm, the surface is plated with hard chromium sand |
| Drafting speed | 500-1100 meters / minute |
| Network nozzle device | 144 spindles (12 sections, 6 spindles per side, User care&selection) |
| Winding form | The range of motion is 100 mm |
| Friction roller | Diameter is 109 mm, surface hard chromium polishing |
| Bobbin clamp | Outer diameter is 92.5 mm |
| Winding bobbin | Φ94.2 (inside dia.) × Φ108 (outside dia.) × 125 (length) mm, with the same strength of POY tubes (User care) |
| Roll form | Cylindrical |
| Roll size | 100 (width) x Φ450 mm |
| Roll weight | 5Kg or more |
| Draft drive | Synchronous motor drive separately. |
| Heating power | Hot plate heating power: 500KVA; Hot plate heating power: 30KVA |
Roller drive motor | FTY2-3000-6, 2 units (1 on left side, 1 on right side), 2.5KW |
Hot plate drive motor | FTY2-3000-6, 2 units (1 on left side, 1 on right side), 2.5KW |
Cold plate drive motor | FTY2-3000-4, 2 units (1 on left side, 1 on right side), 2.5KW |
Friction roller drive motor | FTY2-3000-4, 2 units (1 on left side, 1 on right side), 2.5KW |
Grooved drum drive motor | YZA5632S, 250W, 24 units |
Transfer fiber drive motor | IAO-YZA5632S, 250W, 1 Units |
Machine dimensions | Length 16320 × width 1530 × height 4870 (fiber frame) mm |
Machine weight | About 33000 kg |
3. Process calculation
Code name and meaning
| V1 | Line speed of roller, m/min | n | Motor speed, RPM/min |
| V2 | Line speed of hot plate, m/min | i1 | Draft ratio of zone 1 |
| V3 | Line speed of cold plate, m/min | i2 | Draft ratio of zone 2 (wire out speed) |
| V4 | Line speed of friction roller, m/min | i | Total draft ratio, times |
| f1 | Frequency of roller drive motor, Hz | e | Relaxation ratio(over feed rate,OFR) |
| f2 | Frequency of hot plate motor, Hz | α | Helix angle, degree |
| f3 | Frequency of cold plate motor, Hz | H | Transverse movement, mm |
| f4 | Frequency of friction roller motor, Hz | F5 | Frequency of winding motor, Hz |
Calculation result:
V1=0.124×π×30/60×20f1=3.89557×f1, (194.7785 m/50Hz)
V2=0.09×π×30/60×24/14×20f2=4.847×f2, (242.35 m/50Hz)
V3=0.10×π×30/48×24/14×30f3=10.97976×f3 (504.8988 m/50Hz)
V4=0.108×π×30/48×30f4=6.361725×f4 (318.08625 m/50Hz)
e%=(1-V4/V3)%=(1-0.63×f4/f3)%
α, anti aliasing Δwave ± Hz
F5=0.372×V3×sinα=3.75668×f3×sinα
i1=1.2442×f2/f1
i2=2.0833456×f3/f2
i=i1×i2=2.59217×f3/f1
