Features

Specifications

Applicable Industries: Manufacturing Plant, Machinery Repair Shops

Showroom Location: Indonesia, India

Video Outgoing-inspection: Provided

Machinery Test Report: Provided

Marketing Type: Hot Product 2019

Warranty Of Core Components: 1 Year

Core Components: Motor, Computor Display, Control Board

Condition: New

Application: For Coil Winding Machine

Automatic Grade: Semi-automatic

Production Capacity: 80%

Warranty: 1 Year

Product: Motor Winding Machine Price Air Covering Winder Kc215

Application Field: Spandex Covering Yarn,air Covering Yarn

Take Up Bobbin: Cylindrical Cone

Spindle Gauge: 485mm

Speed: Up To 1100m/min

Traverse: 130mm-250mm

Actual Power Cunsumption: 25%-50%

Type Of Tension: Electronic Tension

Type Of Winding: Digital Precision Winding

Min Unit: 4 Spindles Per Set

After Warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service

Local ServiceÂ Location: Indonesia, India

After-sales Service Provided: Free Spare Parts, Video Technical Support, Online Support, Field Installation, Commissioning And Training, Field Maintenance And Repair Service

Basic Infomation

Payment & Shipping Terms

Packaging Details: Wooden Case and Pallet(according to customer's request) motor winding machine price air covering winder yarn cone winding winder machine for yarn air covering winder kc215 coil winding machine

Supply Ability: 600 Unit/Units per Month

Product Description

Product Overview

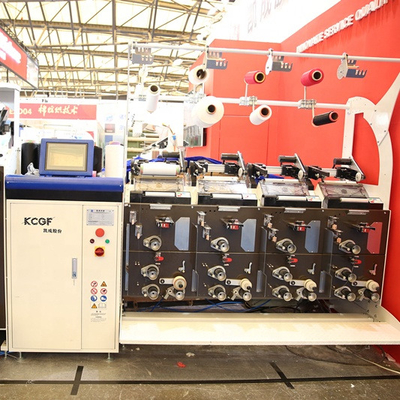

KC215B Air Covering Winder

KC215B Applied range: mainly apply to wind FDY+FDY，FDY+DTY，DTY+DTY with air jet; FDY or DTY air pocket winding with spandex and so
on.

FEATURES AT A GLANCE

COMPACT DIMENSIONS

SAFETY FRAME

SIMPLE CONTROL

EASY MAINTENANCE

Right elevation

Left elevation

Front elevation

Machine Details & Price:

Machine Head: Length 755mm * Width 835mm * Height 1500mm Machine Body:one Section Standard machine type(4spindles/section): length
2000mm×width1190mm×height2130mm

PRODUCT SPECIFICATIONS

No	Item	Details
1	Machine structure	Single sided, single layer, 4 spindles per sections, 10 sections, 40spindles/set
2	Spindle gauge	485mm
3	Type of winding	Digital winding or precision winding
4	Linear speed	Up to 1100m/min (depend on the process parameters)
5	Type of tension	Electronic Gate tension
6	Take-up tube	Cylindrical
7	Package shape	Straight edge or tapered edge shape (The taper angle can be adjusted)
8	Traverse length	130mm-250mm(It can be changed according to the actual situation
9	Take-up package diameter	Up to 280mm(depend on the tank size, there are certain limitations)
10	Rated power	580W/spindle
11	Compression air	6Pa(depend on the process parameters)

PRODUCT CONFIGURATION

Self-developed Control Board

Traverse motor

Yarn break sensor

Technical Service:

1) If buyer need us technician to your place to install machine ,the buyer takes all charges of cost about technician’s flight
tickets, traveling expenses, lodging fee, and insurance premium , and also his salary 50usd per day during the business
travelling,

2)And also our engineer should be given cares by being picked up from airport when he arrives there and being sent off
to the airport when he comes back to China.

Machine producing standard :

Machine producing standard according to the manufacturer ‘s machine technology standard which has put on records in manufacturer local TSB (technology supervision bureau )

SALES AND SERVICE NETWORK

Product packaging

Company Profile

Service:
---Provide photos & videos of our machine running

---Making Sample Yarns as per customer's technics

---Free spare parts

---Online Technical Service

---Online aftersale Service

---Online installing video

Brief Introduction

Zhejiang Kaicheng Intelligent Machinery Co., Ltd.

is a state-level high-tech enterprise which integrates automatic control
software, intelligent high-end textile machinery equipment research and development and production.
We have developed our own automation control hardware, software, electronic control device, including detection sensors,
intelligent controllers, high-performance motors and intelligent, high-end textile mechanical equipment.

At present our machines (twisting machine and winding machine) and spare parts have been sold to more than 30 countries and areas,
for example, Brazil, Peru, El Salvador, Argentina, Turkey, Egypt,India, Pakistan, Malaysia, Vietnam, Indonesia, South Africa,etc.

Our company set up the New Product Research and Development Center in 2011 with a strong research and development technical team
of 16 persons. Until 2016, the company has declared 154 national patents, 134 utility model patents, 8 invention patents.

Our products have obtained 232 national patent certificates, including 12 invention patents. 14 products won the title of
“Provincial New Product”, and 2 products reached the “International Advanced” level in 2011 and 2015 respectively. (Certificate
No. 20110030, 20160005)
The continuous investments and developments on new products help us to be a top leading technology company in China.

Our company will insist on technological innovation to enhance the core competitiveness of the company to support our mission---to meet customer needs constantly and fully to help our customers to gain the most competitive products and also gain the bigger success.

Pls refer to our products types as below,

1) Machine Winders
KC 215E DIGITAL PRECISION WINDING DRAWING THERMAL SETTING MACHINE
KC212 INTELLIGENT ELECTRONIC YARN GUIDE WINDER
KC522A HIGH-SPEED AUTOMATIC WINDER
KC215A INTELLIGENT ELECTRONIC YARN GUIDE WINDER
KC215B ELECTRONIC YARN GUIDE AIR COVERING MACHINE
KC215C AIR TEXTURING MACHINE
KC228 HIGH SPEED PRECISION WINDER HANK TO CONE
KC528 DIGITAL PRECISION WINDING MACHINE (Spun Yarns)
KC212D Intelligent Yarn Winder for Y-Tube(King-Tube)
KC200 HIGH SPEED ASSEMBLY WINDER MACHINE

2) Machine Twister
KC250G TWO-FOR-ONE TWISTER（Soft Packaging/Soft Winding）
KC250B TWO-FOR-ONE TWISTING MACHINE FOR LARGE PACKAGE TUBE 5kgs
KC250C TWO-FOR-ONE TWISTING MACHINE FOR LARGE PACKAGE TUBE 3kgd
KC258B DIRECT CABLING MACHINE
KC208/KC128/KC256 TWO-FOR-ONE TWISTING MACHINE FOR SPUN YARNS
KC310 TWO-FOR-ONE TWISTER FOR FILAMENT YARNS
KC259-380 Two-For-One MACHINE (First twisting & second twisting combined into single position)

Pls feel free to contact us and you are welcome to visit Kaicheng Machinery!
