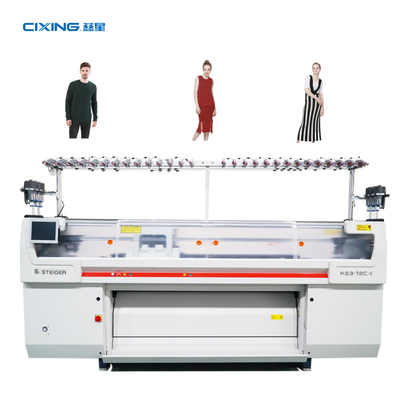

KS3-72C-II | |
Gauge | 11.2G |
Knitting range | Variable knitting range, 72 inch, 82 Inch, 92 inch |
Needle selector | 10 level actuator |
Machine speed | 1.3m/s max The knitting speed is different due to the number of stitches and knitting condition, and it can be randomly adjusted. |
Knitting system | Single carriage three system |
Needle bed configuration | Four—needle beds |
Racking | Driven by ac servo motor, the range of moving needle is up to 2 inches. |
Brush device | Driven by independent motor to achieve automatic switch position of different knitting states. |
Loop density | Step motor control, 255—segment density setting, adopt adjustable range 0—650 of subdivision technology; It has the function or dynamic stitch. |
Knitting movement function | Knitting, transfer, catching needle, tuck, empty needle, tighten knitting, tighten tuck, dynamic stitch, loop storage, moving needle, etc. |
Take-down Device | Flexible take—down device, comb, auxiliary roller device, 255—section segmented adjustment, automatic adjustment of tension. |
Motor rotation | The motor connecting rod reversing, needle selection avoiding and servo optimization achieve rapid and smooth rotation of the carnage. |
Two knots top tension | Sinking antenna. If there are large knots, it will stop; if there are small knots, it will drop to the speed when detecting error, and automatically restore the original speed after knitting 0—99 lines set by itself. |
Color changing system | 2 sets of 8 series total 16 color changing yam feeders, 24 and 32 yam feeders are optional. |
Drive device | Belt drive, ac servo motor, no refueling |
Document transmission | Input and output patterns through U disk and computer network. Storage memory 2G, support expansion. |
Protection system | Front and rear safety door protection, front and rear infrared trigger protection device, emergency stop device. When broken yarn, yarn knots, floating yarn, winding cloth, hitting yarn and system error happen, the machine will start automatic stopping alarm and stroke alarm log. |
Machine size and weight | 72 inch Volume: length*width*height 3556*904*2010 Net weight: about 1500kg |
Backup power | Keep knitting after power off |
Power supply device | Voltage: AC 220V/380V, Frequency: 50HZ/60HZ, Power: 1.5KW |
