China Tellsing Textile Machinery Factory Warp Loom Crochet Elastic Knitting Machine B3

Tellsing.Be established in 1998. Developing and manufacturing high speed loom machines(1/500,2/300,2/250,4/110,4/80,4/65,6/65,6/55,8/55,8/45,10/30,10/45,12/45,14/20); crochet machines for elastic webbing and lace(ts-b3,ts-b8);computerized crochet machine for lace ribbon; pattern logo jacquard weaving machine(192n,240n,256n,320n,384n,480n,512n,640n);high speed rope braiding machine(8s-180s rounded rope, 3s-145s platode rope);high speed rope machines(8s,16s,24s,32s,48s,56s,64s,72s); zipper machine; automatic assembly &forming machines and packing machines for medical apparatus and instruments;

Other equipments for weaving&fabric and braiding: doulbe spindle weft yarn winding machine,bobbin machine(auto.semi-auto);slub machine; warping machine(160s,192s,special specifacation) for yarn thread; 60s,72s,84s spooling machines for elastic rubber,thread,spandex etc.; Rewinding machine; carding machine; rocking machines( 2 heads, 4 heads ); sizing and setting machines; coiling&winding machines;bobbing&spooling packing machine; heading machine for shoe lace etc....... you welcome!

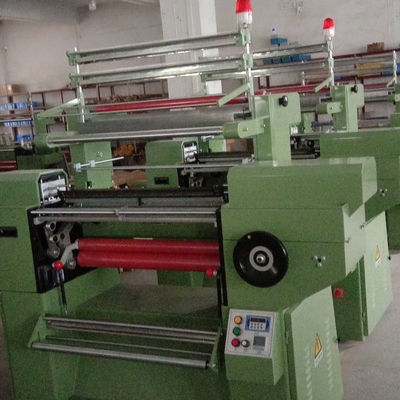

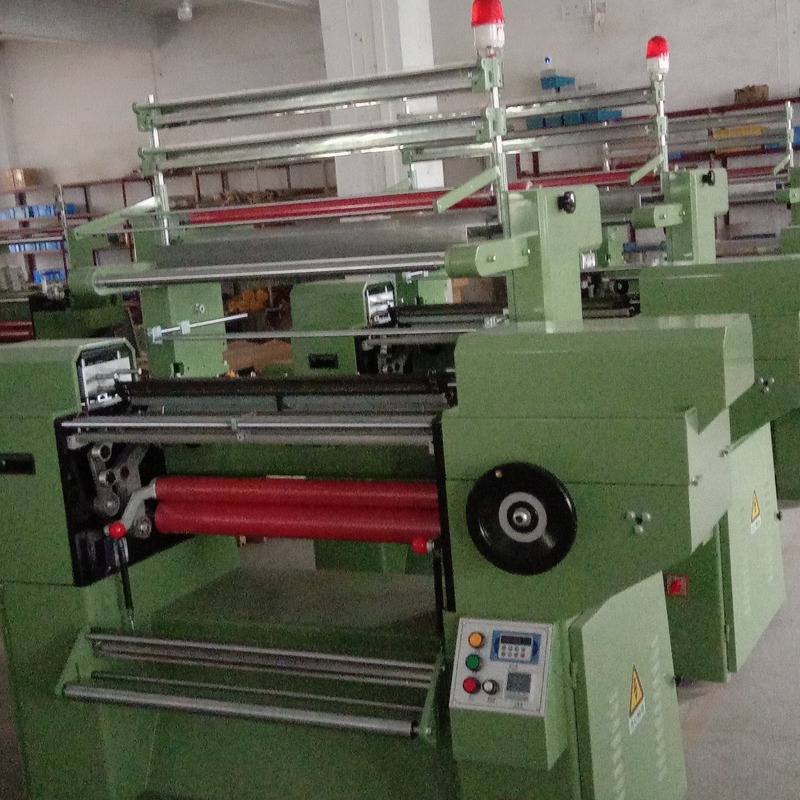

This machine is B3 crochet fabric loom machine, be used for weaving elastic webbing,

 inelastic plane ribbon,respirator tape,garments ribbon, underwear ribbon,

 knapsack ribbon,zipper ribbon,  the fabric wide ranges from 0.2cm to 900cm both

 can be made.

1.machine outlook size: LWH: 1650mm*700mm*1750mm;

  After installing size: LWH: 6m*2.5m*2.5m

 2.Operating width: 980 row needles and 34inch;needles: 12-14-15-18-20(it is needles each inch)

 3.Weft yarn rows: 3

 4.Fabric width/ribbon output quantities: 0.6cm/100p,1cm/62p,1.5cm/42p,2cm/34p,2.5cm/28p,3cm/23p,4cm/18p,5cm/14p,6cm/12p,7cm/10p,8cm/9p,9cm/8p;

 5. Rotate speed: 1500RMP

 6.Noise: lower than 60db

 7. Auxiliary suits of accessories as belows: automatic control device for yarns stopping, preventing ribbon winding device on pulling wheel, dual layer automatic rubber feeding device and assisting rubber feeding parts, take up device of ribbon inside the machine, suits of needles.
