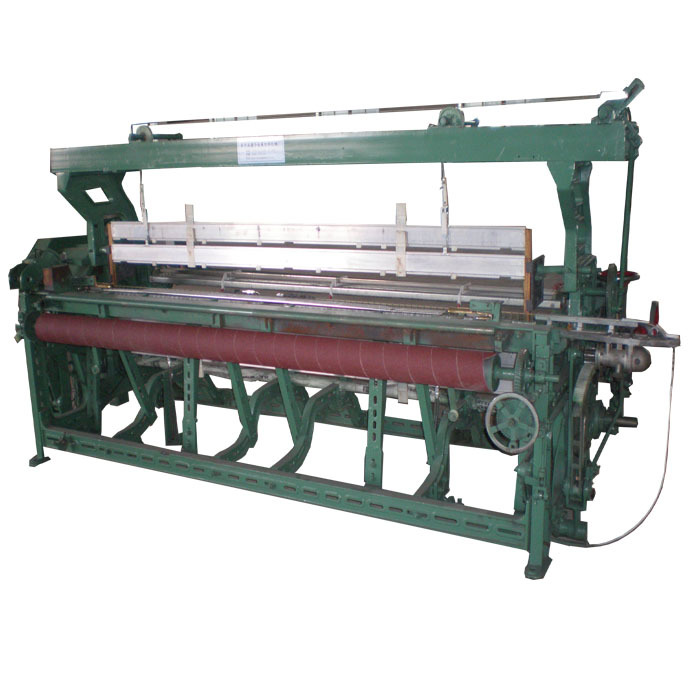

Fiberglass Gridding cloth weaving machine
Product specialty: high product efficiency,good quality,little waste material,breadth can reach 2300mm,the machine work steadily,low noise,use to wind the gridding cloth.
Mostly technique parameter:
| The width | 2300mm |
| Rotate speed | 110-170R.P.M |
| The power | 1.5kw( 8grade)720 R.P.M |
| Exteriorsize | 4850x1827x2120mm |
| Output | 120-150m2/hour |
| Electricity control | P.L.C |
| The total machine weight | 1900kg |
Wire re-winding machine
Apply range:fiberglass,single wire imbue fiber,stick wall cloth in-and-out,SBS waterproof wrap cloth,roving cloth without alkali,head preservation cloth,plain windowscreening and so on tidy up request about fiberglass.
Technique character:work simpleness,technique advance,can finish longitude and axis together,with self-acting truncation machine,with electricity box,ensure the quality of longitude and axis,smooth cloth cover and equality.
Specification: the mostly machine breadth(2.3m),can product according to the clients’ request.
| Yarn shelf | length4.85m,width 0.90m,high 2.0m |
| Ingot quantity | 960 |
| Together weight | 500kg |
| Machine head | width 4.0m,high1.0m,length1.5m |
| Electricity machine | 3kilowatt timing |
| 250 type slowdown machine | 1:31.5 |
| Output | 1500-2000m/h |
| Occupy room | 4x12m |
| Together weight | 1500kg |
Fiberglass griding coating machine
The series products:use to stick wall cloth gridding cloth and all kinds of glass cloth in-and-out, glue,drying,finalize the design,cut side or chop in the weidth and length that need.After fabric molding,no displacement,no fixdness.coal char bake cloth machine, mesh coating and forming machine,with temperature control machine,counter.the day output can provide 5desk weave machine.
Mostly parameter:
| Inside width | 1.2m |
| Oven exterior size | length 8m,width1.5m,thickness 0.70m |
| Weight | 1500kg |
| Machine head | width1.8m,length 1.4m |
| Electricity machine | 22kilowatt timing |
| 80 type slow-down machine | 80 type slow-down machine |
| Lead wind machine | 2.2 kilowatt |
| Machine trail | width1.4m,length1.5m |
| Output | 500-800m/h |
| Occupy room | 3x18m |
Mesh slitting adhesive machine
Thickness: 1mm
Minimum Cutting width: 20mm
Speed: 1000-1500mm/h
Power: 2.2KW
Width: 1200mm( or order according to requirement)
Weight:500kg
Including: feeding parts, slitting parts, recoiler and adhesive system
Noted: the machine can also slitting steel sheet
the control box is wooden case package, other small parts the bag package, the big parts is waterproof film package, if you need others we can do also
All of our machine we offer one year warranty, For the machine we offer video and manufal for operation, if need we can offer engineer oversea install and training, all the charge and fee also the salary of engineer will pay for by the buyer, techinical support all machine life free.
Guarantee: one year, during this year, any broken parts caused by the quality, we can offer free,after this year can offer with the lowest cost.
Install and training: offer video and operation manual, if need engineer oversea service, the customer need to pay the round air tickets, hotel, food and also the salary USD100 per engineer one day.
Delivery time: 20days after advance payment
Payment terms: T/T, 30% in advance, and the balance before delivery. also accept LC.
Packing: waterproof material,control box: wooden case
