Home /Products/Fabric Weaving Machine/Cotton Surgical Bandage Making Machine High Quality And Efficient Cam Air-Jet Hogs Powerful Manufacturers Are Suitable For Home Textile Fabrics Weaving

Cotton Surgical Bandage Making Machine High Quality And Efficient Cam Air-Jet Hogs Powerful Manufacturers Are Suitable For Home Textile Fabrics Weaving

1.0 Sets
MOQ
$32,000.00(1 - 3 Sets) $30,000.00(4 - 11 Sets) $28,000.00(12 - 23 Sets) $24,000.00(>=24 Sets)
Price
Cotton Surgical Bandage Making Machine High Quality And Efficient Cam Air-Jet Hogs Powerful Manufacturers Are Suitable For Home Textile Fabrics Weaving
Features Gallery Product Description Request A Quote
Features
Specifications
Applicable Industries: Manufacturing Plant
Showroom Location: None
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Ordinary Product
Warranty Of Core Components: 1 Year
Core Components: Gear
Condition: New
Type: Air Jet Loom
Application: Surgical Cotton Bandage Making Machine
Production Capacity: 95%-100%
Dimension(L*W*H): 350cm*200cm*200cm
Weight: 2200 KG
Power: 2.8KW~4.5KW
Warranty: 1 Year
Key Selling Points: High Productivity
After-sales Service Provided: Engineers Available To Service Machinery Overseas

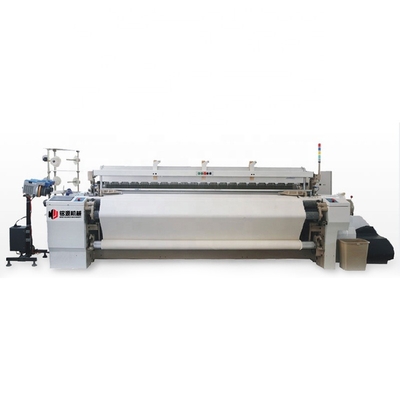

Name: MA9210 High Speed Air-Jet Loom
Reed Width: 150cm~340cm
Shedding: Crank Shedding
Machine Type: High Speed
Colors: 1, 2, 4 Or 6 Colors
Speed: 400-800 RPM
Export Markets: India, Turkey, Russia, Uzbekistan, Indonesia, Egypt
Related Product: MA708 Economic Air Jet Loom
Capacity: 700 Sets/month
Basic Infomation
Payment & Shipping Terms
Packaging Details: Standard packing within containers for MA708 Surgical Cotton Bandage Making Machine
Supply Ability: 800 Set/Sets per Month
Product Description
Specifications of MA9210 High Speed Air Jet Loom
Optional
Reed width
Nominal
150,170,190,210,230,250,280,340cm

Effective
nominal:0--60cm(l 50-250cm) 0--80cm ( >280cm)

Working range

short yarn):nel00-ne2.5
filament):22dtex-1350dtex

Weft selection

1, 2, 4 or 6 colors



Motor
Start mode
Start motor at high speed

Push-button start, stop, f/r slow move

Push-button switch handed

Power
2.8Kw, 3.0Kw, 3.8Kw, 4.5Kw




Weft insertion
Method
Main nozzle+swing nozzle+sub nozzle+abnormality lock
Weft brake
Control
Import high-frequency solenoid valve,computer program contol

Supporting spray solenoid-valve
Supporting spray solenoid valve integrated with flow cavity

Measuring weft storage
Electric control loop separate weft storage
Ballooning prevention device


Beating


Beating-up motion
Double side tank oil-bath type four-bar beating-up motion,six-bar beating-up for 280cm and above

Multi-sleysword solid beating-up warp and weft system

Multi-supporting base, balance weight



Shedding
Crank type flat shedding

Positive cam shedding at bottom

Electric dobby shedding

Electronic jacquard shedding
Double-warp beam

Let-off

Flange diameter
Electric servo continuous let-off

Positive twin back beam

800mm
1000mm


Take-up
Take up method
Electric servo continuous take-up


Take up method
On loom take up diameter(Max dia:600mm)
Outside loom take up diameter(Max dia:1000mm)
Temple
Upper

Selvedge
Leno yarn by planetary gear

Lubrication
For main driving parts: oil-bath type, centralized filling oil(grease)




Shutdown device
Weft breakage
Reflecting doule feeler device

Warp breakage
Electric warp stop device

Others
Selvedge, yarn end treatment, end-broken stop motion

Shutdown display
Screen display, multi-functional shutdown display lights

Weft cutter
Mechanical cutter
Electric cutter
Electric control system
High-deficiency, large screen, vga color image display touch human-computer interface

Are you a factory or a trading company?
-We are the original manufacturer since 2002, we have our own factory, covering an area of 10000 square meters.

What is the service life of the machine?
-The life of the machine is at least 10 years, and it needs good care and regular maintenance.

Do you have machines in stock?
-We don’t have any stock. All the machines are produced after we receive the deposit.

How long is the delivery time?
-It’s usually about 30 days.

Do you have a local agent?
-We have agents in some countries. But in some countries where there are no agents, customers can buy directly from us.

How long is the warranty period of the machine?
-Usually the warranty period is one year, and we will give away the wearing parts.

Will you provide service after the machine is out of warranty?
-Yes, we still provide free technical support even after the warranty period.

What is the output of your company?
-We can produce 800 machines every month.

Which countries have your machines been sold to?
-United States, Argentina, Ecuador, India, Turkey, Pakistan, Bangladesh, Indonesia, South Korea, Russia, Uzbekistan, Pakistan, etc

Can I be your agent?
-Of course, we welcome people with strength to cooperate, become our agent, and carry out marketing and after-sales service work
in the local area, so as to achieve win-win cooperation.

What are the advantages of your machine compared to other suppliers?
-In terms of raw materials and components, we have strict procurement regulations and quality standards.
-In terms of production process and management system, we have a complete and strict production management system.
-In terms of quality inspection, each of our machines has undergone at least three quality inspections by different personnel and
machine operation tests before delivery.

Can I get a discount on the price?
-We always offer the lowest price based on excellent quality. If your order is large, we will give you the best discount.

If the parts of the machine are damaged and I don’t have any parts on hand, how will you send them to me?
-If we have a local agent, we will send someone to help you repair and replace the parts immediately. Otherwise, we will send the
parts to you by air.

Do you intend to provide OEM and ODM services?
-Of course, OEM and ODM services are favored with us. We are the original manufacturer. We have a research and development team of
10 people.

What machines do you produce?
-We are textile machinery manufacturer, our main machines are water jet looms, air jet looms, plastic weaving loom, etc.
